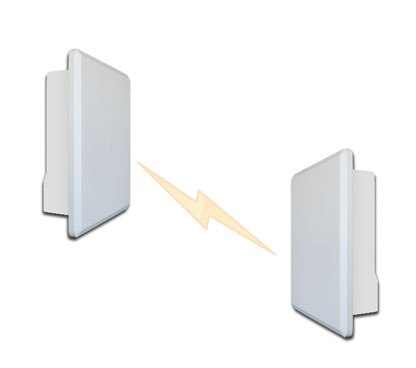

QB-8100-EPA-WD, Tsunami QB 8100 End Point, 300 Mbps, 2.4 and 5 GHz, MIMO 3x3, Type-N Connectors - WD PoE

With over 20 years in wireless innovation, Proxim introduces the Tsunami[tm] QB-8100, an incredibly costeffective, high performance and non-line-of-sight 4G point-to-point (PtP) wireless backhaul solution.With

300Mbps data rates in a complete ``Hop-in-a-Box"" solution, deployments in networks of all sizeswill enjoy a quick return on investment. With incredible channel capacity & flexibility, excellent spectrum efficiency and a highly evolved prioritization platform tailored to deliver voice, video and data applications, the Tsunami[tm] QB-8100 satisfies carriers, wireless service providers and Government organizations with requirements for fast and reliable 4G wireless backhaul. Leveraging the advantages of OFDM and the latest MIMO radio innovations, the Tsunami[tm] QB-8100 draws on Proxim"s proprietaryWireless Outdoor Router Protocol (WORP) to deliver wireless performance in excess of 4G products on the markets today.

World-class Performance
• A Point-to-Point system that delivers a 300 Mbps data rate link at distances of over 5 miles (8 km)
• Very low latency of the order of 2 to 3 ms to support voice and video applications over long distances
• Built-in feature rich network protocols for bridging, routing and gateway functionality

Non-Line-of-Sight and Advanced Features
• Non-line-of-sight capable, utilizing OFDM and enhanced MIMO techniques to penetrate through
obstructions better
• Features dual Gigabit Ethernet ports with PoE out to power other devices like surveillance cameras
and additional radios
• Enables packet identification to create unique and sophisticated service rules and tiered service classes
with ease

Widest Range of Frequencies
• Provides flexible channel planning with support for 4.9 - 6.0 GHz and 2.3 - 2.5 GHz frequencies
• Operates in licensed and unlicensed frequency spectrums and comes as a complete “Hop-In-A-Box”
with a set of accessories for even greater ease of installation
Carrier-grade Security
• Implements tiered security layers for the most secure outdoor wireless communications in the
unlicensed frequency spectrum
• Utilizes Proxim’s Wireless Outdoor Routing Protocol (WORP), which prevents snooping, and features
highly-secure remote management via SSL, SSH and SNMPv3
• Provides advanced AES encryption for military-grade over-the-air communications and radio mutual
authentication eliminates unauthorized use of the system by rogue subscriber units and man-in-themiddle
attacks

Cost Effective and Ease of Use for Quick Return on Investment
• Complete “Hop-In-A-Box” compact outdoor formfactor allows unprecedented ease of installation
• Suitable for the carriers,WISP and Governmentmarkets
• Certified for deployments in the Americas, Europe and Asia
• Themost cost-effective, high performance point-to-point solution fromProxim, enabling any deployment
to enjoy a quick return on investment
